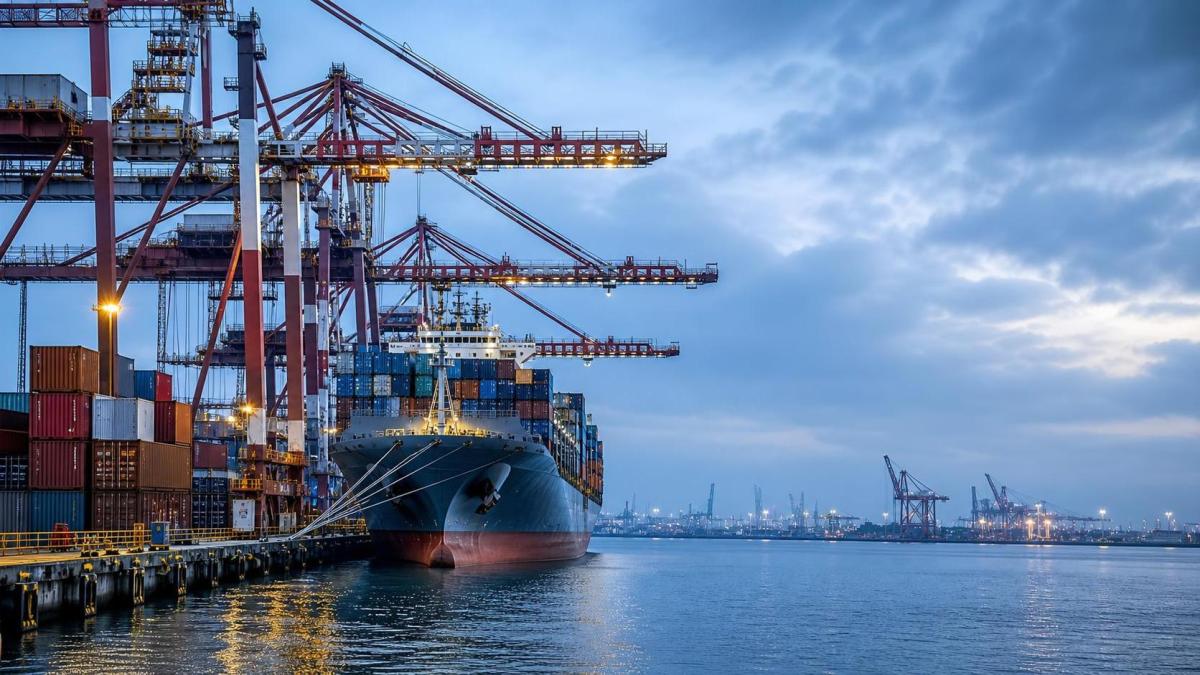

Integrated Ship to Shore Systems: Key Factors for Reliable Port Integration

Integrated Ship to Shore Systems: Key Factors for Reliable Port Integration

For technical evaluators, integrated ship to shore systems are no longer optional. They sit right in the middle of berth productivity, vessel turnaround, control room visibility, and fault recovery. When these systems are specified loosely, ports usually pay for it later through interface mismatches, unstable data exchange, delayed commissioning, and awkward manual workarounds that never quite go away. The better approach is to treat integration as an operating discipline, not just a procurement line item.

If you are comparing solutions for container terminals, multipurpose berths, or smart port upgrades, the checklist below is the one worth working through before you approve a vendor stack. It focuses on what tends to hold up under real operating pressure: interface discipline, control compatibility, resilience, maintainability, and the practical limits of mixed-equipment environments.

Start with the operating boundary, not the brochure

A surprising number of integration failures begin with a vague definition of scope. “Ship to shore” can mean anything from quay crane coordination and berth planning links to a much wider control layer that includes terminal operating systems, vessel ETA feeds, gate flows, yard equipment, power monitoring, and safety interlocks. If the operating boundary is not written down early, suppliers will each assume a different one.

• List every system expected to exchange commands, status, alarms, or planning data.
• Separate hard real-time control links from business or planning interfaces.
• Mark which party owns each interface, including protocol conversion.
• Ask whether the same design must support retrofit assets and new automation layers together.

That last point matters. A greenfield terminal and a brownfield quay with legacy PLCs, mixed crane generations, and partial automation are not evaluated the same way. Integrated ship to shore systems that look elegant in a clean architecture diagram can become fragile once they meet old field devices and undocumented custom logic.

Check interface maturity before feature depth

Most buyers spend too much time comparing visible functions and too little time checking how the system actually talks to adjacent platforms. In practice, interface maturity is often the real differentiator. A platform with fewer dashboard features but cleaner integration behavior is usually the safer choice.

Look for documented support for the protocols and integration methods already present in your port environment. Depending on architecture, that may include OPC UA, Modbus TCP, IEC 61131-based control environments, REST APIs, message brokers, or vendor-specific middleware. Do not assume that “supports API integration” means operationally ready. Ask for the interface definition, update frequency, data ownership rules, error handling behavior, and time synchronization method.

A useful test question is simple: when berth status, crane state, and vessel-side updates conflict for 20 seconds during a network disturbance, which system is authoritative, and how is reconciliation handled afterward? If the answer is fuzzy, the integration is not mature yet.

Do not treat latency as a generic performance number

Ports often ask vendors for “low latency,” which is too imprecise to be useful. Technical evaluation should split latency into categories: operator display refresh, alarm propagation, equipment state feedback, dispatch instruction delivery, and any closed-loop control dependency. These are different problems and may tolerate very different timing behavior.

For example, quay crane anti-sway or drive control is not evaluated the same way as berth planning synchronization. One is operationally sensitive and often stays within dedicated control domains. The other can accept more delay but suffers if timestamps are inconsistent. Ask vendors to define where timing guarantees apply and where they do not. If they present one broad network performance claim for the whole stack, keep digging.

Cybersecurity belongs in the architecture review, not the acceptance meeting

Integrated ship to shore systems bridge IT and OT, which makes them attractive and exposed at the same time. It is not enough to ask whether the supplier has “security features.” You need to see whether the design respects segmentation, access control, patch handling, remote support restrictions, and logging in a way that fits port operations.

Where relevant, ask how the solution aligns with IEC 62443 concepts for industrial automation and control system security. Do not treat that as a box-ticking exercise; many projects reference the standard without applying its practical discipline. Also check how remote diagnostics are enabled. A support tunnel that is convenient during commissioning can become an unmanaged risk later if ownership, approval flow, and session recording are unclear.

One experienced rule here: if the vendor cannot clearly separate operational necessity from convenience access, the support model is not ready for critical infrastructure.

Evaluate failure behavior, not just uptime claims

Uptime percentages in proposal documents are often too abstract to support a buying decision. What matters more is how the system degrades, isolates faults, and recovers. In ports, partial service continuity is usually more valuable than an all-or-nothing architecture.

• Can one crane, one berth, or one subsystem fail without taking down the rest of the operating picture?
• What happens if the terminal operating system is temporarily unavailable?
• Can operators continue safe local control when the supervisory layer is lost?
• How are buffered events replayed after communication is restored?

This is where technical evaluators should insist on fault scenarios, not marketing slides. Ask for factory acceptance and site acceptance test coverage related to communication loss, sensor faults, command duplication, delayed acknowledgements, and bad timestamp ordering. If the vendor has no structured failure matrix, that is a warning sign.

Control room usability is part of integration quality

Technical teams sometimes separate user interface quality from integration quality. In actual operations, they are tightly linked. If alarms from vessel coordination, quay equipment, and berth systems arrive without a usable hierarchy, operators start ignoring the system or creating side channels. That usually means phone calls, spreadsheets, and verbal overrides replacing the digital process the port just paid to build.

A good review should check alarm rationalization, event filtering, role-based views, and the clarity of handoff between marine, terminal, and maintenance teams. The question is not whether the screen looks modern. The question is whether the right person can understand an abnormal condition in seconds and act without guesswork.

Data quality and time sync deserve their own line in the checklist

Poor integration is often blamed on software when the real issue is inconsistent source data. Sensor naming, equipment identifiers, timestamp standards, status code definitions, and berth event logic must be aligned early. Otherwise analytics, optimization, and even basic reporting become unreliable.

For technical evaluators, a practical step is to request a sample tag list and event model before contract finalization. Review whether the naming convention supports lifecycle maintenance, not just commissioning. Also verify how system clocks are synchronized across OT and IT domains. The exact method depends on architecture, and project-specific validation is still required, but this should never be left informal.

Retrofit complexity should be priced honestly

Brownfield port upgrades regularly look cheaper on paper than they turn out to be. The reason is familiar: undocumented field changes, aging communication hardware, spare-part constraints, and control cabinets that do not match drawings anymore. If your integrated ship to shore systems project touches existing cranes or berth assets, ask vendors how they handle interface discovery, signal validation, and phased migration.

Be careful with proposals that assume “minor adaptation” without a completed survey. That phrase often hides schedule and variation-order risk. If site conditions have not been fully verified, mark the corresponding assumptions clearly as 【待核实】 in the evaluation record and keep contingency visible in both timeline and budget discussions.

Look beyond commissioning: who can maintain this in year five?

Some systems perform well during handover because vendor specialists are still deeply involved. The real test comes later, when the port’s own engineers need to diagnose intermittent faults, update interface mappings, replace hardware, or add a new berth process without destabilizing everything else.

If a system can only be maintained comfortably by the original integrator, that dependency should be treated as a strategic decision, not an accidental outcome.

Standards matter, but context matters more

In maritime and port environments, buyers often ask for compliance references early, and rightly so. But standards should be interpreted in relation to the actual functional split of the system. Depending on the equipment and project scope, you may need to review marine electrical practices, port authority rules, industrial control safety requirements, cyber frameworks, and local grid or communications rules. The exact combination is project-specific and should be confirmed against site, flag, class, and terminal requirements where applicable.

What you want from a supplier is not a long list of standard names. You want traceability: which requirement applies, where it is implemented, how it is tested, and what remains outside scope. That level of clarity saves a lot of argument late in the project.

A short decision filter before you move to vendor shortlist

Before narrowing the field, ask five blunt questions:

1. Can this system coexist with our current cranes, control logic, and terminal software without excessive custom middleware?
2. Is failure behavior well defined, demonstrated, and acceptable for live port operations?
3. Will our own team be able to maintain and modify it after handover?
4. Are cybersecurity and remote access designed for critical infrastructure reality, not just convenience?
5. Have the brownfield assumptions, data definitions, and interface responsibilities been verified rather than guessed?

If any of those answers stay vague, the evaluation is not finished yet. In this category, reliable port integration usually comes from disciplined engineering choices made early, long before the system goes live. That is where technical evaluators have the most leverage, and it is where integrated ship to shore systems either become a dependable operating platform or another expensive coordination problem.
